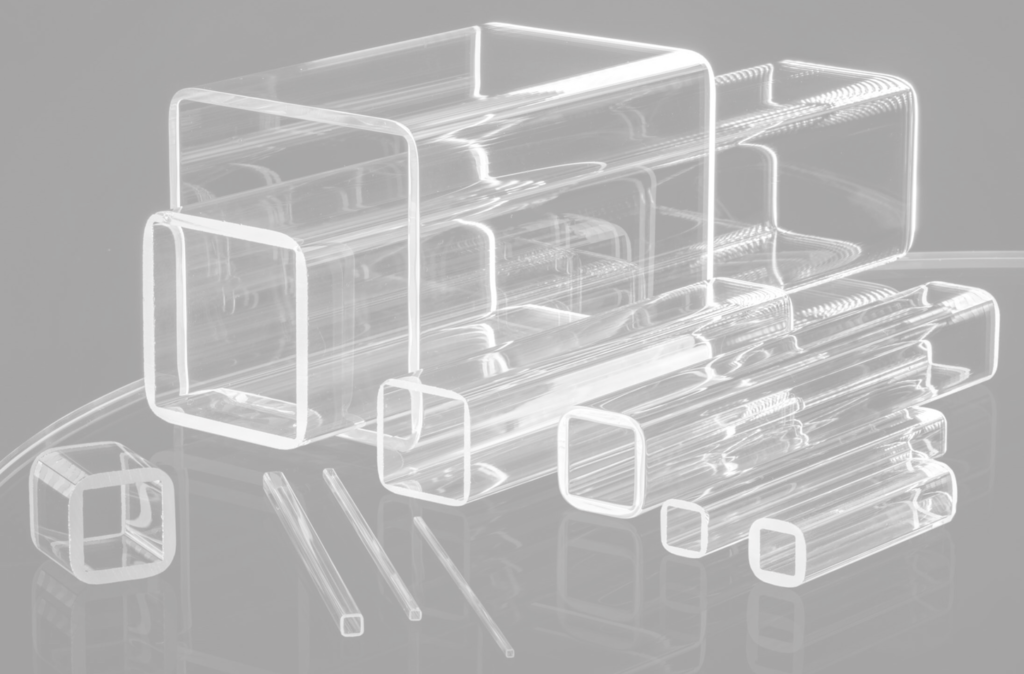

Quartz Tube is a high-performance material by Jingge Semi widely used in optical and industrial applications due to its exceptional properties. Composed primarily of fused silica (SiO₂ ≥99.99%), it exhibits high thermal resistance (withstand temperatures up to 1200°C), low thermal expansion, and excellent UV transparency (transmittance ≥90% in UV range).
In optical fields, quartz tubes are integral to precision instruments such as atomic absorption spectrometers (e.g., slotted quartz tubes for atom-trapping), solar energy systems (enhancing light efficiency and uniformity in photovoltaic/thermal hybrid systems), and semiconductor manufacturing (as reactors or protective sleeves). Their chemical inertness and durability also make them ideal for harsh environments like laboratory equipment and high-temperature industrial processes.
Technical Parameters
| No. | Characteristic | Spec |
|---|---|---|
| 1 | Density | 2.20g/cm3 |
| 2 | Mohs hardness | 5.5~6.5 |
| 3 | Tensile strength | 4.8x10^7 Pa (N/mm2) (7000 psi) |
| 4 | Compressive strength | ＞1.1x10^9 Pa (160,000 psi) |
| 5 | Bulk modulus | 3.7x10^10 Pa (5.3x10^6 psi) |
| 6 | Poisson's ratio | 0.17 |
| 7 | Thermal expansion | 5.5x10^-7cm/cm.°C (20°C-320°C) |
| 8 | Thermal conductivity | 1.4 W/m.°C |
| 9 | Softening point | 1683°C |
| 10 | Annealing point | 1215°C |
| 11 | Strain point | 1120°C |
Technical Advantages
Ultra-High Purity (SiO₂ ≥99.99%)
Ensures minimal impurities for superior UV/IR transmission and reduced optical distortion in critical applications.Exceptional Thermal Stability (Up to 1200°C)
Withstands extreme temperature fluctuations without deformation, ideal for high-temperature processes and rapid cooling systems.UV-Grade Transparency (90%+ Transmittance in 185-2500nm Range)
Optimized for UV lithography, laser systems, and photochemical reactors requiring precise light control.Low Thermal Expansion Coefficient (5.5×10⁻⁷/°C)
Minimizes structural stress under thermal cycling, ensuring long-term reliability in semiconductor manufacturing.Customizable Surface Treatments (Etched, Polished, or Slotted)
Tailored for applications like atomic absorption spectroscopy (AAS) and solar energy hybrid systems.Corrosion & Chemical Resistance
Immune to acids, alkalis, and organic solvents, suitable for harsh laboratory and industrial environments.
