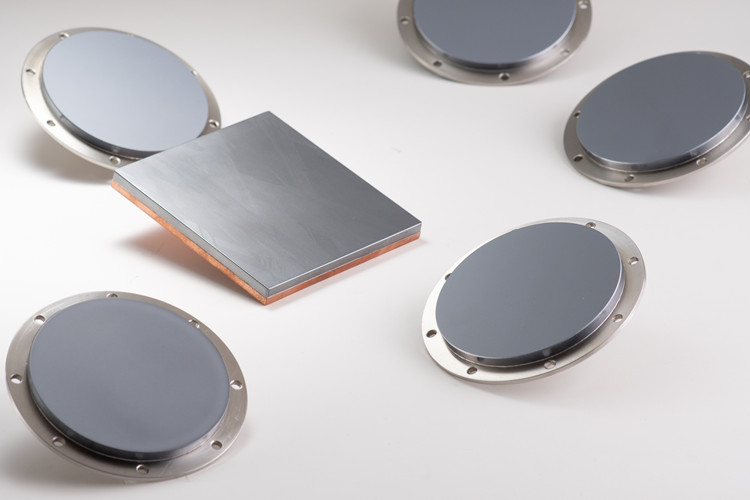

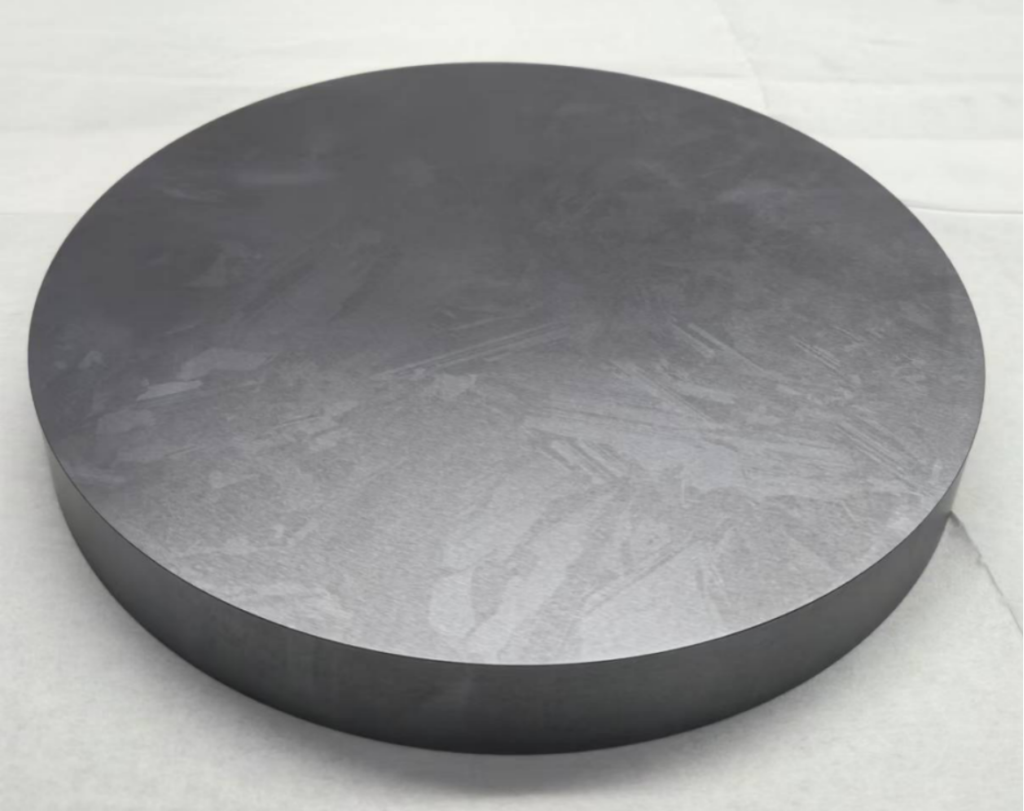

Silicon Planar Targets are critical materials for thin film deposition in semiconductor manufacturing, photovoltaic cells, and display technologies. Monocrystalline Silicon Targets offer superior structural uniformity and high-purity performance, with maximum compatibility for large-size substrates up to 450mm in diameter, ideal for advanced semiconductor processes. Polycrystalline Silicon Targets provide flexible solutions through multi-size (multi-segment assembly), enabling cost-effective customization for diverse applications. Both types ensure high sputtering efficiency and stability, meeting the demands of precision thin film coating in industrial and research settings.
Technical Parameters
| No. | Characteristic | Unit | Spec |
|---|---|---|---|
| 1 | Purity | % | ＞6N |
| 2 | Material | / | Mono / Poly |
| 3 | Diameter scale | mm | 0~2000 / Customizable |
| 4 | Type/Contains | / | P type/ N type |
| 5 | Resistivity | Ω•cm3 | <0.02 / 1~4 / 60~90 |
| 6 | Crystal Orientation | / | 、、 |
| 7 | Dopant | / | B、P、Ga、As、Sb |
| 8 | Ra | um | ≤0.8 |
Technical Advantages
Precision Engineering for 450mm Monocrystalline Targets：Achieve ultra-uniform thin-film deposition with our industry-leading 450mm diameter monocrystalline silicon targets, optimized for next-gen semiconductor fabrication.
Flexible Multi-Segment Polycrystalline Solutions：Customize cost-efficient thin-film systems using modular polycrystalline silicon targets, adaptable to diverse sizes and complex coating requirements.
99.9999%+ High-Purity Material Guarantee：Minimize contamination risks with ultra-high-purity silicon targets, ensuring consistent performance in critical applications like MEMS and optoelectronics.
Superior Sputtering Efficiency & Longevity：Maximize productivity through advanced grain structure control, delivering 20% higher target utilization rates versus conventional designs.
End-to-End OEM/Research Compatibility：From R&D labs to mass production, our targets supportfull-process integrationwith PVD, CVD, and ion beam deposition systems.
